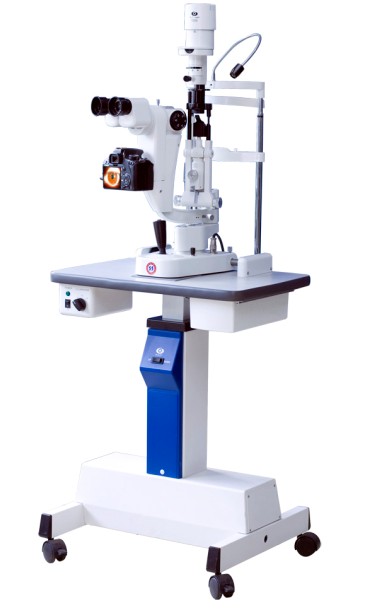

数码裂隙灯 (YZ5T )

Galilean stereoscopic microscope provides a great third dimension and large-angle observation. In-built Integrated beamsplitter with camera adapter

Detailed description

数码裂隙灯并配置专业软件

Model no.: YZ5T

CE and FDA认证

产品特点

For photography of cornea, sclera, anterior chamber, iris, lens, retinal and set up patients' database

Characteristics
What doctors see from eyepieces is live on the monitor of both camera and PC.
Images are taken by joystick, or "Space" key of keyboard, or button of software
Up to 18 megapixel via Canon or Nikon DSLR camera.
Background illumination specifically designed for darkroom environment, for better cornea photography.
Professional software for images capturing, processing, and patients database management.

Specifications
Microscope Type	Galilean stereoscopic microscope
Magnification	Five Steps by drum rotation
Eyepiece	12.5X
Field of View	6 x (φ33) 10x(φ22.5) 16x (φ14) 25x (φ8.8) 40x (φ5.5)
Range of Pupil Distance	45 mm~75 mm
Adjustment of Diopter	-5D~+3D
Slit Width	0mm~14mm adjustable(slit is round when the slit width is 14mm)
Slit Height	1mm~14mm adjustable
Aperture Diameter	φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm
Slit Angle	0°~180° adjustable
Slit Inclination	5°, 10°, 15°, 20°
Filter	heat absorption, grey, redfree, cobalt blue
Illumination Bulb	12V/ 30W Halogen Bulb
Maxial Illuminance	≥280000 Lx
Preceding Mirror	－58.7D
Collection Medium	DSLR Camera
Illuminations Type of Filming	Background illumination
Input Voltage	AC220V±22 V, AC110V±11 V
