SL-350 Slit lamp

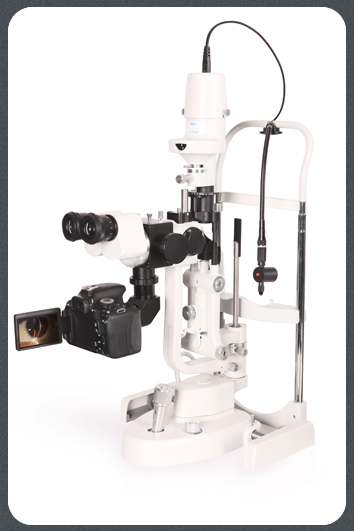

able upgrade to digital by beam splitter, camera adapter & DSLR camera or CCD adapter & CCD.

Detailed description

Slit lamp Microscope
Haag Streit Type

Model: SL-350 (5 steps, halogen Bulb)
Model: SL-350S (3 steps, halogen Bulb)
Model: SL-350C (2 steps, halogen Bulb)

CE & US FDA approved.

Characteristics:
·Imported Schott optics from Germany

Specifications:
Microscope type	Galilean system
Magnification changer	Revolving drum (5 steps)
Total magnification	6X, 10X, 16X, 25X, 40X (or 10x, 16x, 25x, or 10x, 16x)
Ocular magnification	12.5 X
Ocular field	Ø18mm
Inter pupillary distance	52mm~78mm
Diopter adjustment	+6D to -6D
Object image field Ø in mm	34.7(6X), 22(10X), 13.5(16X), 8.5(25X), 5.5(40X)
Slit image width	0~14mm continuous
Slit image length	1~14mm continuous
Light source	6V / 20W halogen incandescent light bulb
Slit image radial range	0～180°
Filters	Heat aborption, redfree(green), cobalt blue
Illumination fields (Ø in mm:)	Ø in mm: 0.2/ 1/ 2/ 3/ 5/ 10/ 14/ 1~14mm continuously
Illumination intensity:	≥50KLX
Optional Accessories	Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, camera adapter, CCD adapter
Optional Accessories
