LED 光源眼科手术显微镜

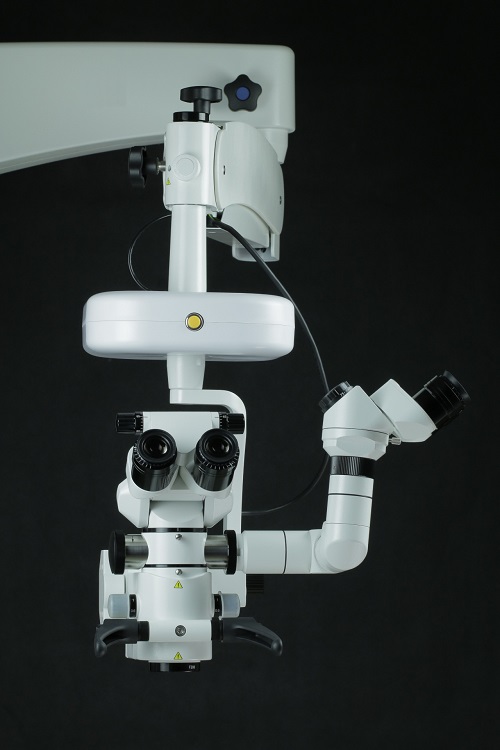

OMS2650 LED 光源眼科手术显微镜
CE & US FDA 认证
Features:
| Excellent optics | |||||
| German lenses, multi-layer coatings | |||||
| Lens made of imported glass from Germany to reduce the optical aberration. | |||||
| All of lenses are apochromatic, multi-layer coated and anti-reflective. | |||||
| Reliable X-Y coupling | |||||
| With one button design and no complicated settings, The X-Y coupling enables guided movement in one plane. | |||||
| Ergonomic foot panel | |||||
|
Without distraction and interruption, you can conveniently adjust the light intensity, level of focus, X-Y positioning, and recover focus position. |
|||||
| Comfortable LED illumination | |||||
|
Brilliant red reflex, natural colors, more contrast as well as lower energy and maintenance costs, and no harmful IR or UV radiation for the patient. |
|||||
| Easy and Comfortable Operating | |||||
| 0~180° inclinable binocular (option) | |||||
| Inclinable binoculars feature the widest range of any binocular for user comfort. | |||||
| Rotatable Handgrip | |||||
|
Rotatable handgrip can be adjusted to user's preferred position and enable the user to easily place the OMS in the desired position. |
|||||

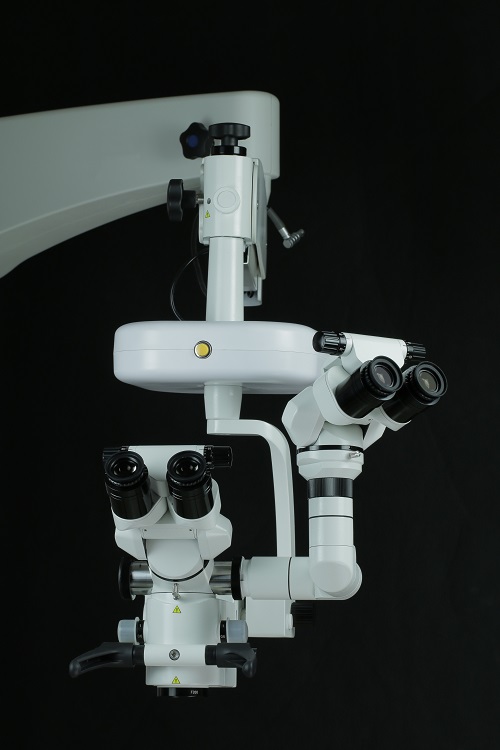

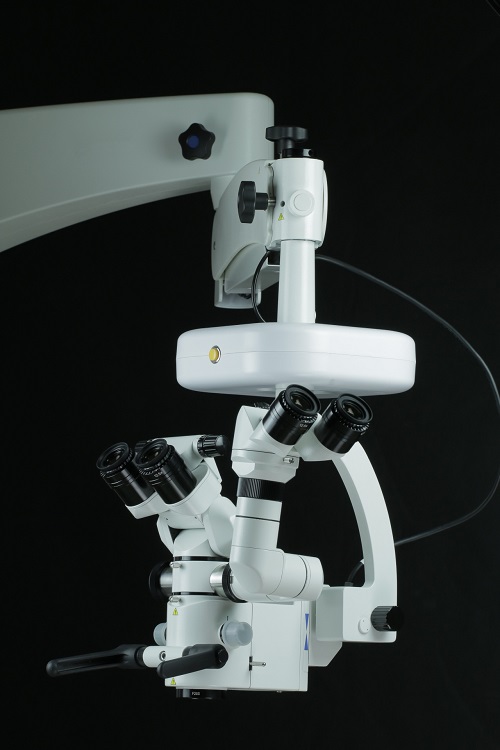

| Assistant's microscope (option) | |||||
| Stereo coobservation device | |||||
|
A stereo device which can be adjusted in the three axes is available for coobservational. It can be fitted with either a stragith or inclined |
|||||
| Specification: | ||
| OPTICS | Optic Lens | Schott ® lens |
| Eyepiece | 12.5X wide-angle eyepiece (optionally also 10X) | |
| Inclinable Binocular | 0-180° adjustable | |
| Objective Lens | f=200 | |
| Diopter Adjustment | ±7D | |
| Pupil Distance | 54mm~76mm | |
| Magnification | 5 Steps by drum rotation | |
| Steps of Magnification (Y) | 0.4X, 0.6X, 1X, 1.6X, 2.5X | |
| Total Magnification | 4.3X, 6.8X, 10.6X, 16.9X, 26.5X | |
| Field of View diameter | 52mm, 33mm, 21mm, 13mm, 8.3mm | |
| Focusing |
Motorized,
focus range 40mm; 5 optional objective lenses: F200; X-Y coupling range: 40mm x 40mm; one button on side |
|
| ILLUMINATION | Illumination Source | LED with life time > 60, 000 hours |
| Filter | Red free, Retinal Protection filter | |
| Red Reflex | Yes | |
| Light Control | Foot Control | |
| Input Voltage | AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz | |
| BASE PART | Reaching Radius of the second Arm | 600mm; rotation +/-150 degrees, +/-300mm up and down |
| Reaching Radius of the first Arm | 500mm; rotation 360 degrees | |
| Reach of Arm | 1350mm | |
| Height | 1750mm | |
| Basement | 620mm*610mm | |
| Foot switch | 12-Function foot switch | |
| PACK | Packing Volume | 0.9 CBM, 1 Carton |
| Total Weight | 130 KGS | |
