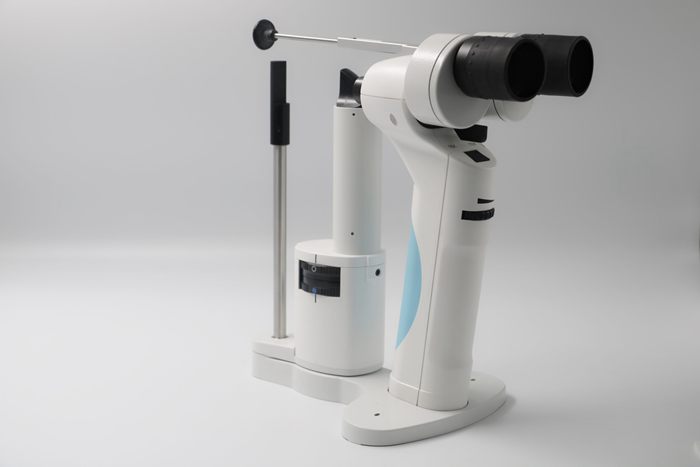

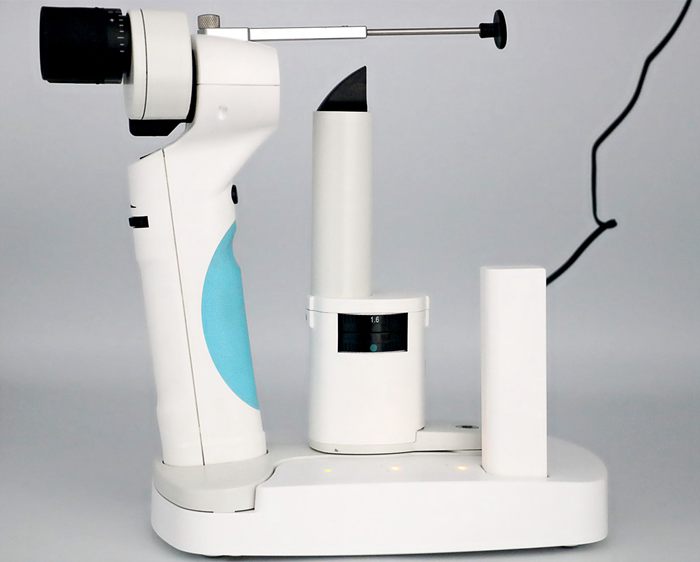

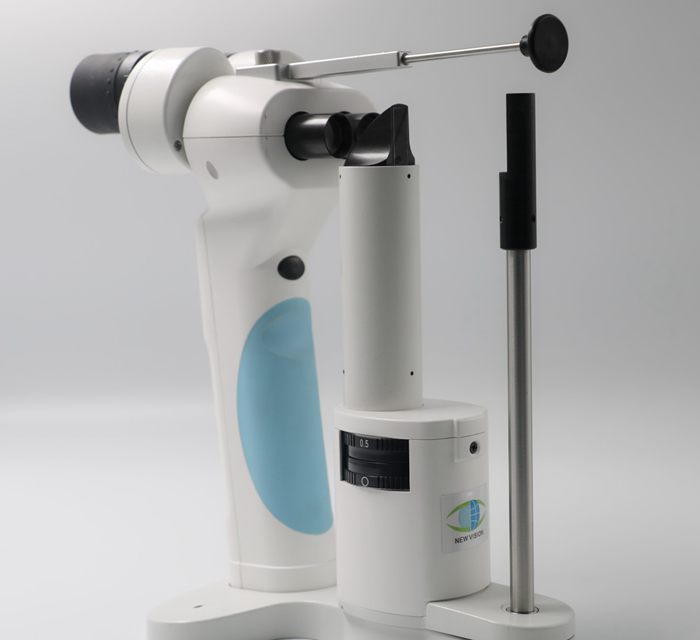

便携式手持裂隙灯
| 便携式手持裂隙灯 |
| SL-200 |
Magnifications
change via dialing the lever
Characteristics
Lightweight,
Single hand operated
functions
as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home,
carry-out or
mobile hospital.
Packed in Alu-Alloy case
Specifications
Total
magnifications
10x, 16x by
rotating objective lens
Diopter adjustment
+/-6D
Visual field
Dia
12mm
PD adjustment range
50-72mm
Working distance
60mm
Slit width
0.15mm, 0.5mm, 0.8mm and 1.6mm slits, 12mm circle and 1mm square.
Slit length
1-12mm
Filters
Cobalt
blue, Green, Heat Absorption filter
Aperture
0.2mm, 1mm, 5mm, 12mm
Illmination angle
On
the level circumference +/-60degrees
Light source
High
luminance white LED
Voltage
Li-ion
battery 7.4V 1600 mAh
Operation time
6
hours (in full charged with maximum illumination)
Dimension
200mm(W)x115mm(D)x250mm(H)
Net Weight
about
900g (including a battery)
