眼科超声波生物纤维镜(Ultra-Portable)

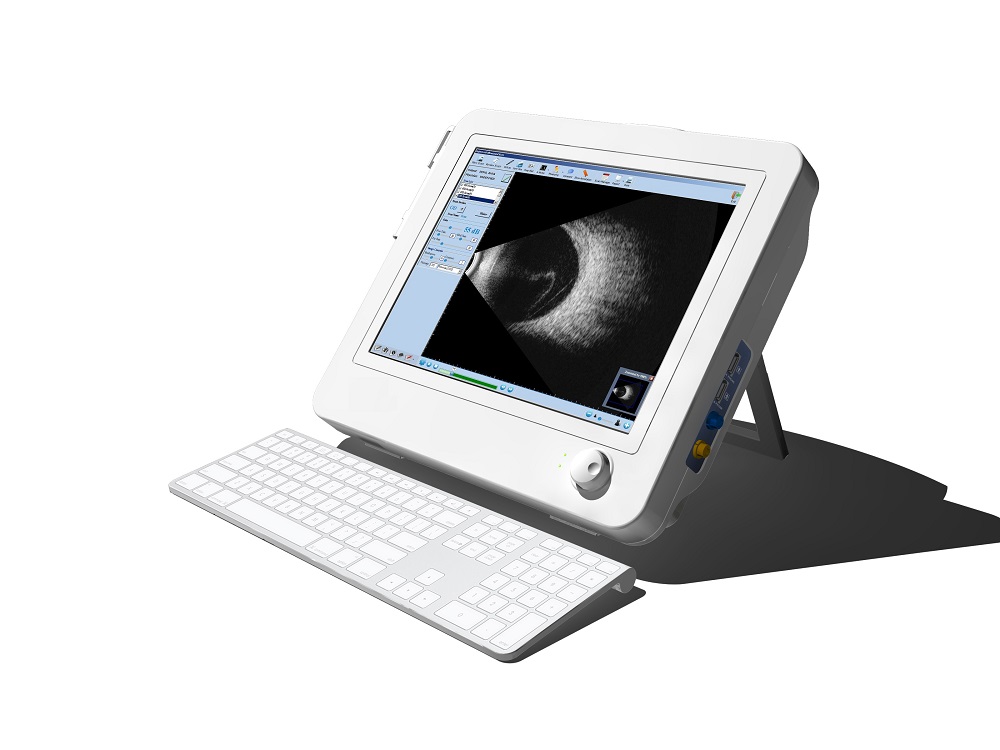

Ultra Portable Ultrasound Biomicroscope (UBM)
Detailed description
|
Ultrasound Biomicroscope (UBM) Ultra Portable
USA made Probe Screen is optional
Highlights |
|
Hand Piece with contact or immersion probes |
| Activation switch on the probe |
| Easy to operate |
| Corneal protection, safe and reliable |
| Professional Angle, Area, and Ruler analysis software |
| One touch video file (AVI) saving function |
| Data Wireless transfer |
| Durable and water-proof |
| Free software updates |
|
Specifications |
||
| UBM(Ultrasound Biomicroscope) | ||
| Frequency (MHZ): 48 MHz | ||
| Scanning Method: Variable field sector scanner | ||
| Gain (dB)( Frozen image gain adjustment): 0-120 Db | ||
| Gain Curves: Logarithmic with user-selectable window (contrast) and level (brightness) control | ||
| Field of View (Depth in mm): 32mm | ||
| Image Process: Adjustable Gamma: Linear, S-Curve, Log, Color | ||
| Display Mode: UBM,UBM+A, | ||
| Anterior Segement Biometry: Single measurement of cornea thickness,anterior chamber,depth (ACD),and lens thickness | ||
| ZOOM (x): live zoom(8x) | ||
| Reports: Microsoft Word™,Html or PDF | ||
| Measurement Calipers w/ velocity adjustment: Length, angle ,Area | ||
| Snapshot (still image) format: Jpeg, bmp, png, tiff | ||
| Systems Requirement | ||
| Operating sytem: Microsoft Windows XP, 7, and 8 | ||
| Processor: 32bit or 64 bit,1.6G or higher | ||
| Memory: 2G RAM | ||
| Ports: USB 2.0 | ||
| Display: 1024x768(Min) resolution with 32bit | ||
| Printer: Standard PC Printer | ||
Packing List
UBM
Probe (USA made)
Software
Footswitch
Power
Line
