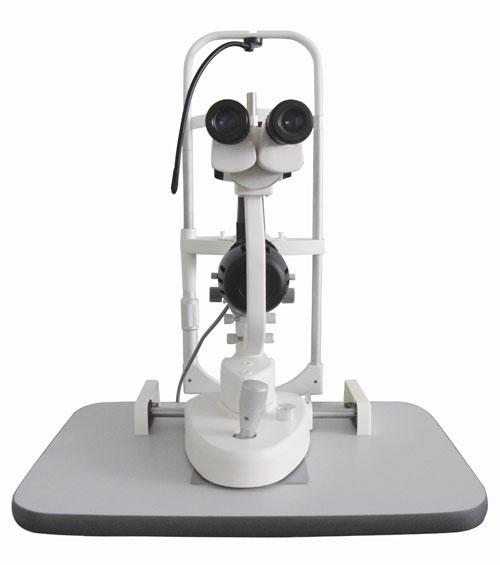

SL-260 Slit lamp (LED Bulb)

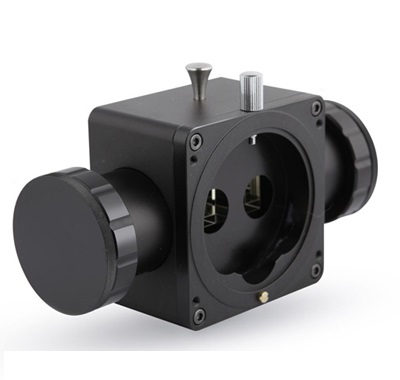

able upgrade to digital by beam splitter, camera adapter & DSLR camera or CCD adapter & CCD.

Detailed description

Slit lamp Microscope
Zeiss Type

Model: SL-260 (5 steps, LED Bulb)
Model: SL-260S (3 steps, LED Bulb)

Characteristics
Imported Schott optics from Germany

Specifications
Microscope type	Galilean system

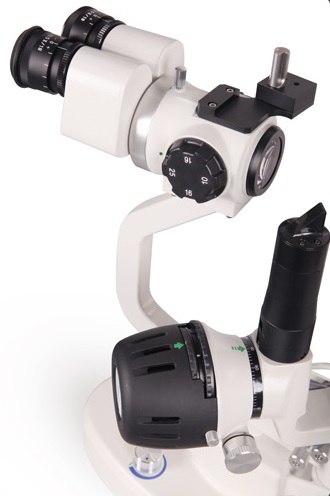

Magnification changer	Revolving drum (5 steps)
Total magnification	6X, 10X, 16X, 25X, 40X (or 10x, 16x, 25x)
Ocular magnification	12.5 X
Ocular field	φ18mm
Inter pupillary distance	52mm~78mm
Diopter adjustment	-6D~+6D
Object image field φ in mm	34.7(6X), 22(10X), 13.5(16X), 8.5(25X), 5.5(40X)
Slit image width	0~14mm continuous
Slit image length	1~14mm continuous
Light source	12V / 10W LED light bulb
Slit image radial range	0~180°
Filters	Heat aborption, redfree(green), cobalt blue
Illumination fields (φ in mm:)	φ in mm: 0.5/ 3.5/ 8/ 14/ 1~14mm continuous
Illumination intensity:	≥50KLX
Optional Accessories	Applanation Tonometer, Measuring Eye Piece ,Trihedron Lens, Gonioscope, Funduscope, Aspheric Lens, Retinal Lens, Teaching Tube, beamsplitter, camera adapter, CCD adapter
