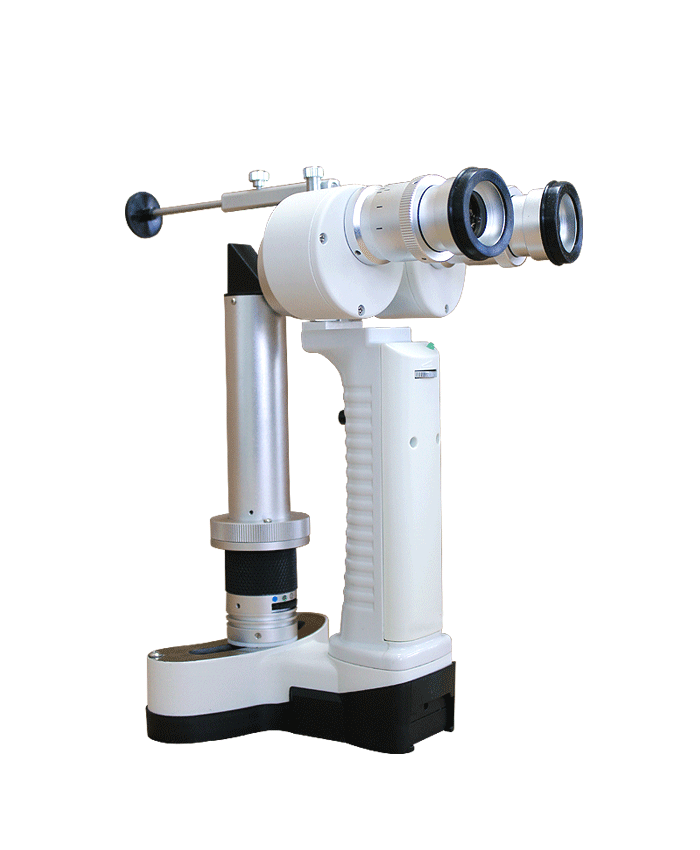

LED光源便携式手持裂隙灯
FEATURES:
Lightweight, Single hand operated
functions as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home, carry-out or mobile hospital.
Detailed description
| 便携式手持裂隙灯 | ||
| Hand Held type | ||
| Model: KJ5S1 (4 aperatures: 1mm, 3mm, 5mm, 10mm) | ||
| Model: KJ5S2 (1 aperature: 10mm) | ||
| CE and FDA 认证 | ||
| Features | |||
| Lightweight, Single hand operated | |||
| functions as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home, carry-out or mobile hospital. | |||

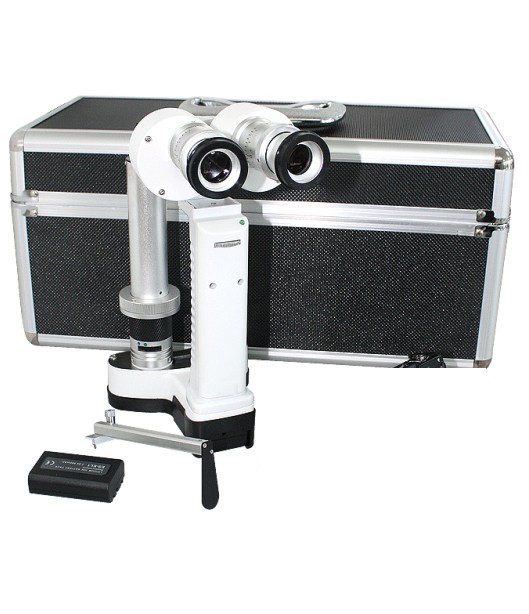

| Packed in Alu-Alloy case | |||
| Specifications | |||
| Microscope | Eyepiece | 10x, 16x | |
| Total magnifications | 10x, 16x | ||
| Diopter adjustment | +/-5D | ||
| Visual field | Dia 10mm | ||
| PD adjustment range | 45-70mm (at eyepiece 10x) and 50-70mm (at eyepiece 16x) | ||
| Working distance | 78--80mm | ||
| Illumination | Slit width | 0-10mm | |
| Slit length | 1-10mm | ||
| Filters | Cobalt blue, Green, Heat Absorption filter | ||
| Spot | 1mm, 3mm, 5mm, 10mm (or 10mm) | ||
| Illmination angle | On the level circumference +/-30degrees | ||
| Light source | Light source | High luminance white LED | |
| Battery | Voltage | Li-ion battery 7.4V 680mAh | |
| Operation time | 2 hours (in full charged with maximum illumination) | ||
| Charger | Imput voltage | AC 100-240V 60-50Hz | |
| Output voltage | DC 12V 500mAh | ||
| Standard accessories | Carrying case 1pc, Battery 2pc, Battery Charger 1pc, Forehead support 1pc, Diopter adjustment bar 1pc | ||
| Optional accessories | 16x Eyepiece (1set), Spare battery 7.4V 680mAh (1pc) | ||
| Dimension and weight | Dimension | 195mm(W)x105mm(D)x230mm(H) | |
| Net Weight | about 750g (including a battery) | ||
