眼科手术显微镜(YZ20T4)

The product is a double binocular operation microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery.

Detailed description

Operating Microscope for Ophthalmology
眼科手术显微镜

Model: YZ20T4
FDA and CE

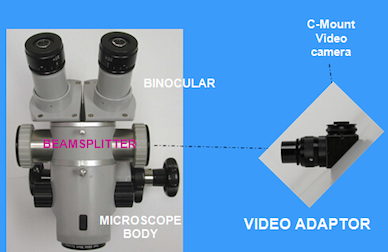

Available for digital by introducing HD Video recording system

The product is a double binocular operation microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery.

技术参数
◆助手镜可转变为对手镜，能满足眼科及其他科室多种手术需要
◆可根据需要连接示教、视频设备
◆提供f200/f250/f300物镜，适用眼科，手外科及骨科手术
◆斜照明可做裂隙，宽度可调，角度可360°旋转
◆所有镜片运用多层镀膜技术，防止霉变，增强镜片透射率
◆X/Y移动自动复位

Specifications:

Eyepiece Magnifications	12.5×/18B
Diopter Adjustment	±7D
Pupil Distance	50mm～75mm
Magnifications for Main Microscope	f200: 4X 6X 10X 16X 25X
	f250: 3.2X 5X 8X 12.8X 20X
	f300:2.7X 4.2X 6.7X 11X 17X
Magnifications for Assitant Microscope	f200: 6X 10X 16X
	f250: 5X 8X 12.8X
	f300: 4.2X 6.7X 11X
Maximal Resolution	112 LP/mm
Illumination Source	12V/100W， Cold Reflection Halogen Bulb for Medical Use
Illumination Type	6°+0°coaxial illumination of cold light source and 25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable,and its angle is 360°rotation.
Coaxial Illumination	≥50000lx
Oblique Illumination	≥45000lx
Reaching Radius of Arm	1040mm
Adjustable Vertical Range	850mm～1350mm
Fine Focusing Speed and Range	≤2mm/s，≥50mm
Speed for X/Y and Range	≤2mm/s，50mm×50mm
Input Voltage	AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power	330VA
Fuse	AC250V T4.0A、AC125V T8.0A
Electrical Safety Standard	Executive Standard: GB9706.1-2007、type I
Packing Volume	0.727m3，5cartons
Total Weight	210kg
