眼科手术显微镜 (YZ20T9)

Magnifications for Assistant Microscope 6x , 10x , 14x

Detailed description

Operating Microscope for Ophthalmology

眼科手术显微镜

Model: YZ20T9

FDA and CE

The product is a double binocular operation microscope designed for two men.It has excellent optical performance and it is comfortable to be used.

技术参数

◆ 光学系统采用目前先进的复消色差，光学平衡技术，双目融合性好，立体感强，色彩还原性佳；
◆ 采用独立的电气控制箱，仪器具备故障自诊功能，维修简便；
◆ 具备良好的延伸性，可以增加示教镜，摄像装置和图像系统。

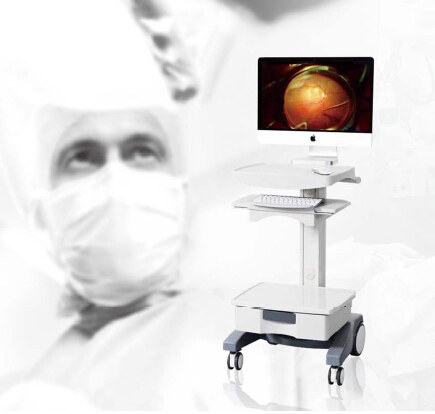

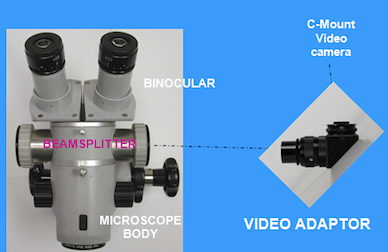

Available for digital by introducing HD Video recording system

Specifications:

Eyepiece Magnification	12.5×/18B
Objective Lens	f=200
Working Distance	190mm
Magnifications for Main Microscope	4×, 6×, 10×, 16×, 25×
Magnifications for Assistant Microscope	6×, 10×, 14×
Diameter of Field	58mm, 38mm, 23mm, 14mm, 9mm
Diopter Adjustment	±7D
Pupil Distance	50mm～75mm
Maximal Resolution	119 LP/mm
Focusing Range for Assistant Microscope	≥30mm
Illumination Source	12V/100W，Cold Reflection Halogen Bulb for Medical Use
Illumination Type	6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination	≥50000lx
Oblique Illumination	≥45000lx
Reaching Radius of Arm	1240mm
Adjustable Vertical Range	850mm～1350mm
Fine Focusing Speed and Range	≤2mm/s，≥50mm
Speed for X/Y and Range	≤2mm/s，50mm×50mm
Input Voltage	AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power	330VA
Fuse	AC250V T4.0A, AC125V T8.0A
Electrical Safety Standard	Executive standard :GB9706.1-2007, Class I
Packing Volume	0.786m3，5cartons
Total Weight	213kg
Packing Volume	0.756m3，5cartons
Total Weight	215kg
