眼科手术显微镜 (SOM-2000DX )
Pupil Distance 50mm ～ 75mm (main microscope is 45mm ～ 80mm)
Detailed description
Operating Microscope for Ophthalmology
Model: SOM-2000DX
Model: SOM-2000DX
FDA and CE
Hightlights:
Zoom Microscope

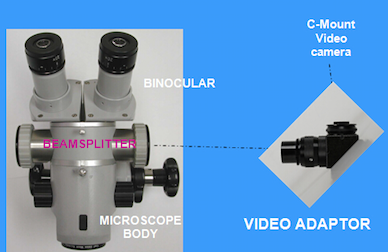

Available for digital by introducing HD Video recording system
| Specifications: | |
| Eyepiece Magnification | 12.5×/18B |
| Objective Lens | f=200 |
| Working Distance | 170mm |
| Magnification for Main Microscope | 4.6×-27×, motorized and manual control, |
| Continuous Magnification | |
| Magnification for Assistant Microscope | 6×、10×、16× |
| Diameter of Field | φ46mm ~φ8.5mm |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm ～ 75mm (main microscope is 45mm ～ 80mm) |
| Maximal Resolution | 126LP/mm |
| Focusing Range for Assistant Microscope | ≥30mm |
| Illumination Source | 120V/100W Medical Xenon Lamp and 12V/100W Halogen Lamp. Dual-source hand- switched |
| Illumination Type | 6°+2°Coaxial illumination, 26°oblique illumination |
| Filter | UV-IR Filter， Yellow Spot Protection Filter，Redfree，GG435，GG475 |
| Coaxial Illumination | ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated |
| Oblique Illumination | ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated |
| Reaching Radius of Arm | 1230mm |
| Adjustable Vertical Range | 925mm ～ 1465mm |
| Fine Focusing Speed and Range | ≤2mm/s，≥45mm |
| Speed for X/Y and Range | ≤2mm/s，50mm×50mm |
| Input Voltage | AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz |
| Power | 280VA |
| Fuse | AC250V T4.0A、AC125V T8.0A |
| Electrical Safety Standard | Executive standard:GB9706.1-2007 |
| Packing Volume | 0.856m3，5cartons |
| Total Weight | 230kg |
