266, 355, 532nm ji激光防护镜适配于莱卡手术显微镜

Detailed description

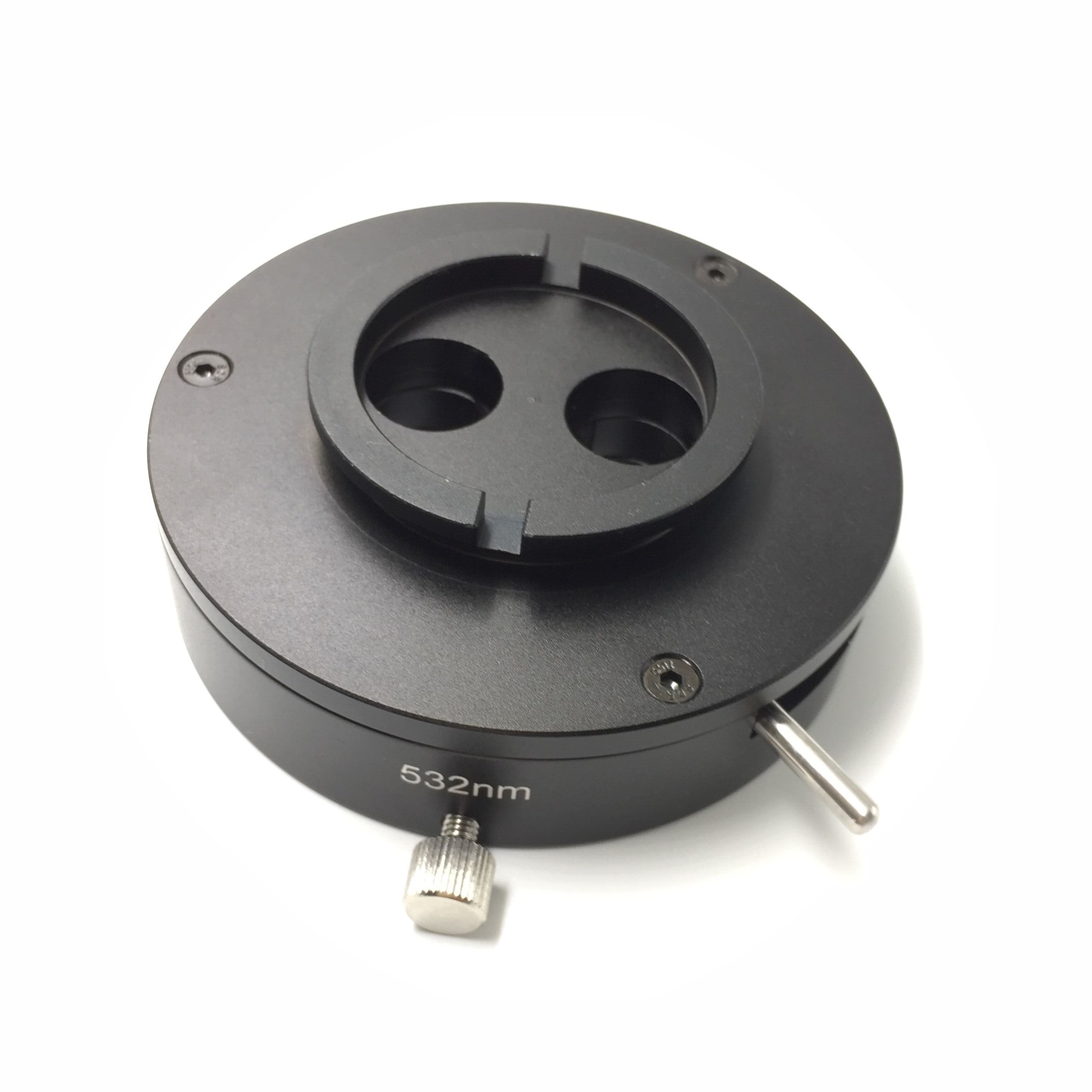

266, 355, 532nm Laser Safety Filter for Leica

Model: NV-LF-532L

Laser filter is designed for filtrating harmful waves so as to protect doctor's eyes when doing Laser surgery.

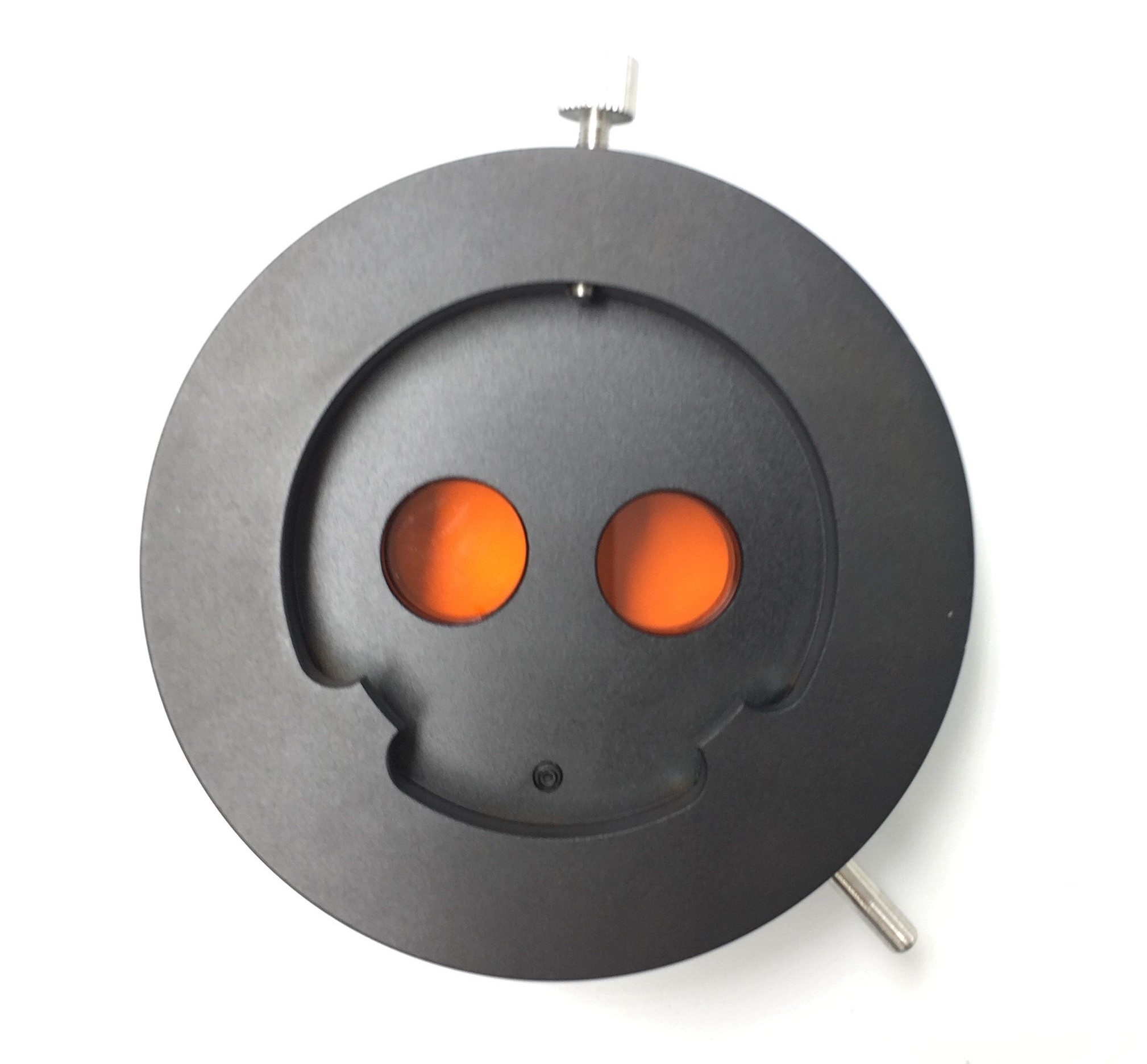

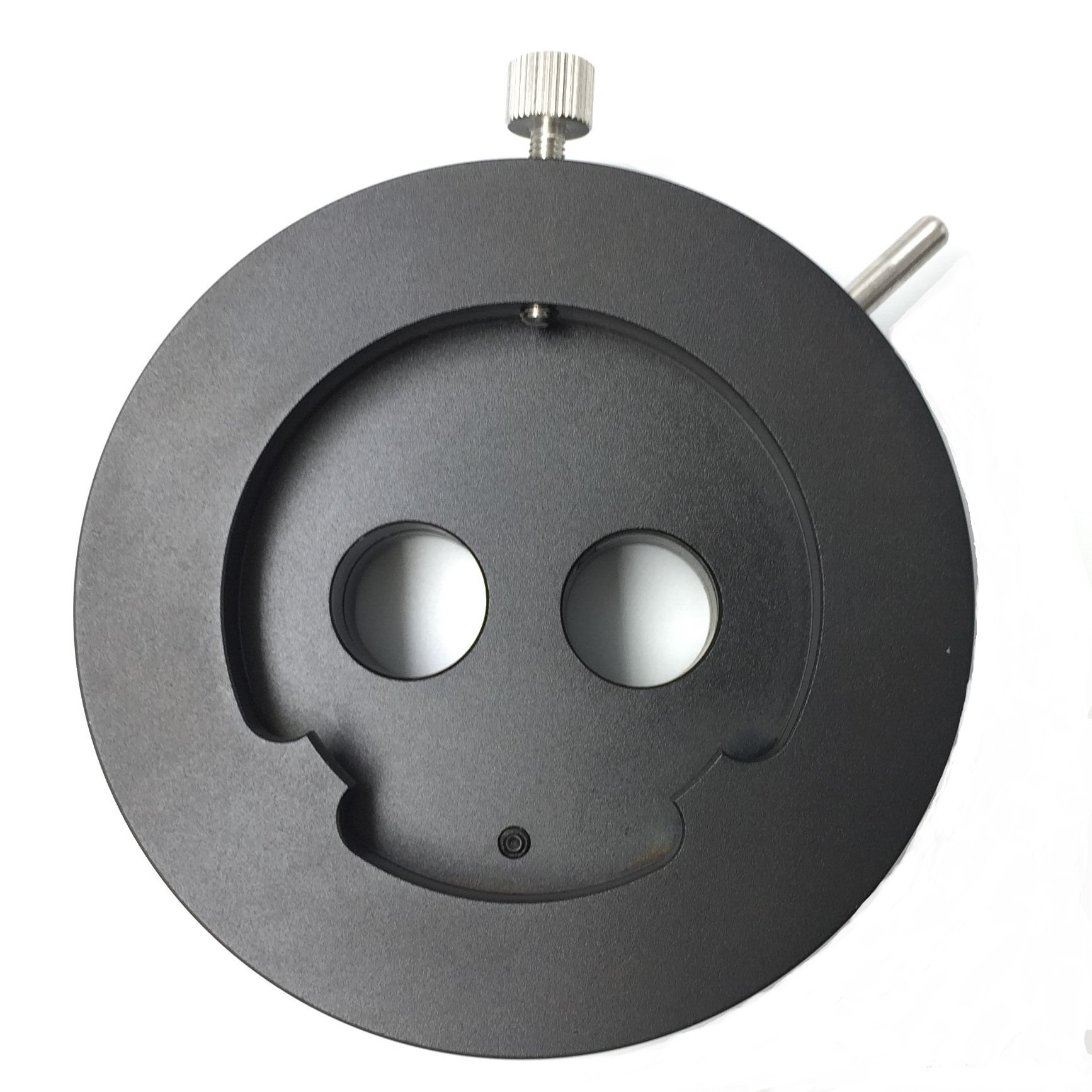

The filter lens can be shift to "off" position when laser surgery finished, and turn on when during surgery.

266, 355, 532nm Laser Safety Filter

Application: Excimer, UV, harmonic Nd:YAG (266nm + 355nm + 532nm), Argon, KTP

Material: mineral glass laminated

Filter colour: orange

Filter thickness: appr. 5,8 mm VLT: appr. 40 %

Diameter: 18,10 mm Tolerance: ± 0,4 mm

Certified protection levels according to DIN EN 207: 180-315 D LB10 + IR LB5

>315-532 D LB7 + IR LB8 + M LB8Y

PF CE

These are the complete specifications for the Laser filter 266, 355, 532nm

D AB5+ IR AB3 (OD 10+) 180-315

D AB6 + IR AB7 + M AB6 (OD 9+) 315 – 532

DIRM AB4 ( OD 4+) >532-540

DIRM AB2 (OD 2+) >540-548

DIRM AB1 (OD 1+) >548-553
