眼科手术显微镜(SOM-2000D)

Pupil Distance 50mm ～ 75mm (main microscope is 45mm ～ 80mm)

Detailed description

Operating Microscope for Ophthalmology
眼科手术显微镜

Model: SOM-2000D
FDA and CE

Highlights:
The product is an advanced double binocular operation microscope designed for two men, ZOOM magnification and foot switch.

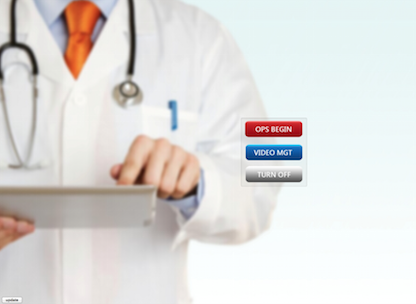

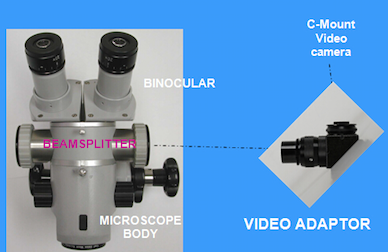

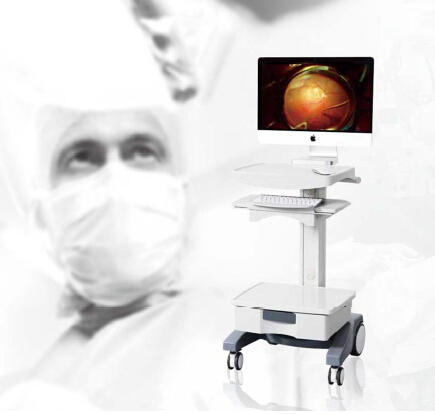

Available for digital by introducing HD Video recording system

技术参数

◆光学系统采用目前先进的复消色差，光学平衡技术，双目融合性好，立体感强，色彩还原性佳；
◆电气元件采用模块化设计，仪器具备故障自诊功能，维修简便；
◆整机采用太空平衡系统，显微镜镜头和镜臂向任意方向推拉均轻松自如；
◆具备良好的延伸性，可以增加示教镜，摄像装置和图像系统。

Specifications:
Eyepiece Magnifications	12.5×/18B
Objective Lens	f=200
Working Distance	170mm
Magnification for Main Microscope	4.6×～27× motorized and manual control
Magnification for Main Microscope	continuous magnification
Magnification for Assistant Microscope	6×, 10×, 16×
Diameter of Field	4646+46mm～8.58.588.58mm
Diopter Adjustment	±7D
Pupil Distance	50mm ～ 75mm (main microscope is 45mm ～ 80mm)
Maximal Resolution	119 LP/mm
Focusing Range for Assistant Microscope	≥30mm
Illumination Source	12V/100W, cold reflection halogen lamp for medical use
Illumination Type	6°+0°coaxial illumination of cold light source, 26°oblique illumination
Coaxial Illumination	≥80000lx, 1～9level, panel operated
Oblique Illumination	≥60000lx, 1～9level, panel operated
Reaching Radius of Arm	1230mm
Adjustable Vertical Range	880mm～1420mm
Fine Focusing Speed and Range	≤2mm/s, ≥50mm
Speed for X/Y and Range	≤2mm/s, 50mm×50mm
Input Voltage	AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power	170VA
Fuse	AC250V T4.04.0444.0000A , AC1250V T8.0588.0A
Electrical Safety Standard	Executive standard:GB9706.1-2007, Class I
Packing Volume	0.756m3, 5cartons
Total Weight	215kg
