眼科手术显微镜 (YZ20P5)

Ophthalmic surgical microscope

Detailed description

Operation Microscope Ophthalmology

眼科手术显微镜

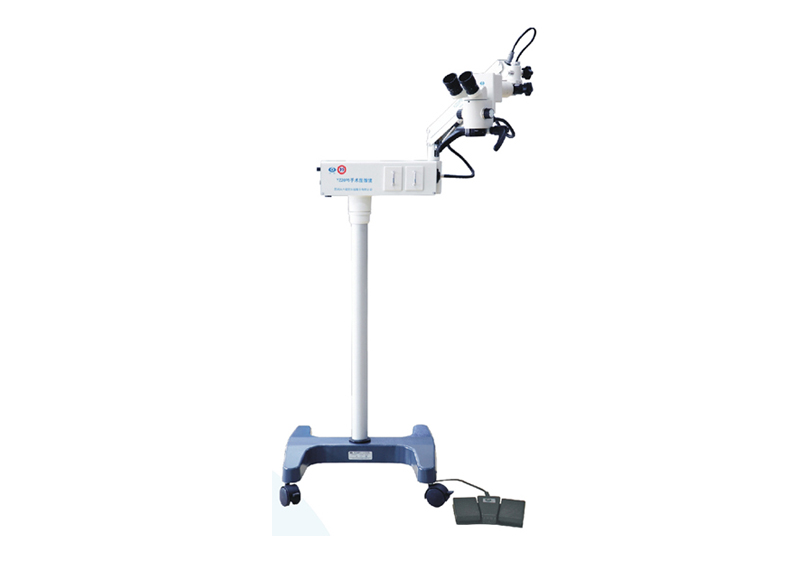

Model: YZ20P5

Portable Style

The product is a simple coaxial illumination operation microscope for one surgeon. It is portable, compact and can meet the requirements of general ohthalmology operations, usually applied in mobile hospital.
Characteristics:
· All the lenses are multi-coated, transmissivity enhanced, mildewproof and anti-reflective.
· The microscope can focusing by foot-control, it has three steps magnification (or five steps) and has a good field depth and bino-combination. It can cater the requirements for cataract operation.
· Optional objectives: f250/f300/f350f/f400.
· Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.

Specifications:
Eyepiece Magnification	12.5×
Objective Lens	f=200
Working Distance	190mm
Magnifications for Main Microscope	5.3x, 8x, 12x
Diameter of Field	φ37mm, φ25mm, φ16.7mm
Diopter Adjustment	±7D
Pupil Distance	50mm～80mm
Maximal Resolution	100LP/mm
Illumination Source	12V/100W, medical cold reflection halogen lamp
Illumination Type	6°+0°Coaxial cold light source illumination
Coaxial Illumination	≥30000lx
Reaching Radius of Arm	870mm
Adjustable Vertical Range	700mm～1100mm
Fine Focusing Range	30mm
Input Voltage	AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz
Power	120VA
Fuse	AC250V T1.25A , AC125V T2.5A
Electrical Safety Standard	Executive Standard: GB9706.1-2007, type I
Packing Volume	0.2m³, 1carton
Total Weight	41kg

技术参数

◆镜片采用多层镀膜技术，增强透射率，防止霉变发生；
◆脚控调焦，三档变倍，景深和双目融合性好，能满足白内障手术需要；
◆采用复消色差的技术，使不同波长的光线在镜头后的聚焦点接近，术者的视野更加清晰；
◆整机重量只有41KG，整机轻便小巧，特别适合流动医疗；
◆可选配台式部件，整机更加轻便；也可根据不同手术需求进行特殊定制，满足眼科，五官科等多种手术需求；
◆可选配F250/F300/F400物镜。
